7307A 35 x 80 x 21 angular contact ball bearing

7307A 35 x 80 x 21 angular contact ball bearing
7307A 35 x 80 x 21 angular contact ball bearing

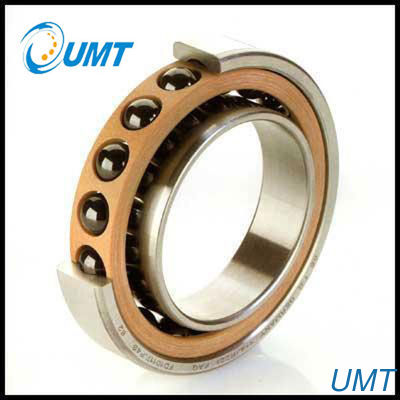

Large Image :  7307A 35 x 80 x 21 angular contact ball bearing

Product Details:

Place of Origin: China, Japan
Brand Name: UMT, NSK, NTN,
Model Number: 7207B

Payment & Shipping Terms:

Minimum Order Quantity: 100
Packaging Details: original package, Netural package, single package, Wooden package+pallet, Carton package+pallet, or as customerized.
Delivery Time: 2-7 days after receiving the payments or deposit (ball bearing)
Payment Terms: L/C, T/T, Paypal, Western union,
Supply Ability: 1,000,000 pieces per month
Detailed Product Description
High Light:

FAG Angular Contact Ball Bearing

,

angular contact bearings

7307A 35 x 80 x 21 angular contact ball bearing



Quick Detail:



1. Structure: Angular Contact

2. Type: Ball

3. Brand Name: UMT

4. Bore Size: 35 mm

5. Outside Diameter:80 mm

6. Model Number: 7307A

7. Precision Rating: P0,P6,P5,P4,P2

8. Seals Type: Z,ZZ,RS,2RZ,2RS

9. Number of Row: Single Row

10. Place of Origin: Japan

11. Width: 21mm

12. Net weight: 0.5kg

13. Material: Chrome steel, Stainless steel

14. Cage: Steel,Brass,Nylon

15. Type: ball

16. Clearance: C0,C1,C2,C3,C4,C5 etc.

17. Vibration: V1,V2,V3

18. Service: OEM Service & Good Service

19. Sample available: Yes

20. Manufacturer: Yes





Description:



Angular contact ball bearings are designed for combination radial and axial loading. Single-row bearings

have high thrust capacity in one direction. Some single-row bearings are specifically designed for duplex

mounting in sets for maximum performance. Double-row Conrad bearings can accommodate thrust in

both directions.





Specifications:



7307A 35 x 80 x 21 angular contact ball bearing

Model Number

7307A

Structure

Angular Contact

Type

Ball

Brand Name

UMT

Bore Size

35mm

Outside Diameter

80mm

Thickness

21mm

Net weight

0.5kg

Seals Type

Z, ZZ, RS, 2RZ, 2RS

Number of Row

Single Row

Place of Origin

Janpan

Material

Chrome steel, Stainless steel

Cage

Brass, Steel, Nylon

Vibration Level

V1, V2, V3

Clearance

C0, C1, C2, C3, C4, C5 etc.

Precision Rating

P0, P6, P5, P4, P2

Hardness

59-63HRC

Service

OEM or original brand

Sample available

Yes

Manufacturer

Yes

Quality guaranteed

Yes

Certificate

ISO9001:2008, ISO/TS16949

Application/Function

Automotive, truck, tractors, construction machinery

Other Service

Design service, Buyer label service

Packaging Details

Industrial Packing, Individual Boxed Packing, or OEM

Delivery Detail

2-7 days after receiving the payments or deposit





Applications:



Used in common applications, such as compressors, industrial transmissions, railway drive systems,

automotive drive systems.





Competitive Advantage:



1. Quality level: reach the same level as the Japanese and European bearings

2. Tolerance level: ABEC-1 (P0), ABEC-3 (P6)

3. Less coefficient of friction

4. High limiting speed

5. Large size range

6. variations of structure
