51102 Steel deep grove ball bearings for motorcycle engine and ART parts

China 51102 Steel deep grove ball bearings for motorcycle engine and ART parts supplier
51102 Steel deep grove ball bearings for motorcycle engine and ART parts supplier 51102 Steel deep grove ball bearings for motorcycle engine and ART parts supplier

Large Image :  51102 Steel deep grove ball bearings for motorcycle engine and ART parts

Product Details:

Place of Origin: china
Brand Name: OEM , UMT , SKF, FAG, TINKEM ,KG, AND SO ON
Model Number: 51102

Payment & Shipping Terms:

Minimum Order Quantity: 5 pcs
Price: 0.1-10 usd /pc
Packaging Details: Original package, Neutral package, single package, Wooden package+pallet, Carton package+pallet, or as customerized.
Delivery Time: After receive the deposit
Payment Terms: T/T, Western Union, L/C, D/A
Supply Ability: 1000000pcs/month
Contact Now
Detailed Product Description
Material: Chrome Steel GCr15 Model: Ball Thrust Bearing 51100
Clearance: C0,C2, C3, C4 Internal Elimination Code: C0 C2 C3 C4 C5 Bearing
Lubrication: Oil / Grease Use The Feature: Low Noise
Quality: High Precision Brand Name: KOYO, NSK, THK, OEM OR TRIETERN
Precision Rating: P0, P6, P5 Samples: Availeble
Model No: 51102



51102 Steel deep grove ball bearings for motorcycle engine and ART parts



Application

  • Road Planes
  • Steel rolling / heavy industry / Transmissions
  • Agricultural, pumps, mining
  • General heavy engineering applications
  • Marine, shipping and paper
Types of Thrust ball bearing
  • Single direction thrust ball bearings: consist of two washers with raceways and balls guided b a cage. Washers have flat seating surfaces, and that is why they must be supported so that all balls can be evenly loaded. Bearings carry the axial load only in one direction. They are not able to carry radial forces.
  • Double direction thrust ball bearings: have two cages with balls between the central shaft washer and two houding washers with flat seating surfaces. The shaft washer has raceways on both sides and is fixed on the journal. Bearings are able to carry only axial forces in both directions.
  • Model 51102
    Dimension 15*28*9mm
    Weight 0.024 kg
    Greese/Oil As you requirement, such as SRL ,PS2, Alvania R12 and so on.
    Hardness HRC60~HRC63
    Bearing type GCR15 Material (Chrome Steel) deep groove ball bearings
    Quality level Reach the same level as Japanes and European bearings
    Feature low voice,high speed,long life
    Application Mainly used in motorcycle rear axle wheel hub, heavy machine tools' main shafts, big power reduction gears, axletree axle boxes, roller wheels of transportation devices, and the supporting rollers and working rollers of the rolling mills.
    Delivery time

    1,It's mainly depend on your order;

    2, Usually about 7-15 days

    Payment terms T/T, L/C,Western Union,etc
    Package 1,barreled package+outer carton+pallets
    2,single box+outer carton+pallets
    3,tube package+middle box+outer carton+pallets
    4,According to your's requirement
    Details We have complete process for the production and quality assurance to make sure our products can meet your requirement.
    1.Assembly
    2.Windage test
    3.Cleaning
    4.Rotary test
    5.Greasing and gland
    6.Noise inspection
    7.Appearance inspection
    8.Rust prevention
    9.Product packaging




Axial contact ball bearing Type Numbers:


Bearing Type Bearing Size d*D*B(mm) Bearing N.W.(kg) Bearing Type Bearing Size d*D*B(mm) Bearing N.W.(kg)
New Code Original Code New Code Original Code
51100 8100 10*25*9 0.019 51200 8200 10*26*11 0.0293
51101 8101 12*26*9 0.021 51201 8201 12*28*11 0.0324
51102 8102 15*28*9 0.024 51202 8202 15*32*12 0.0444
51103 8103 17*30*9 0.025 51203 8203 17*35*12 0.0506
51104 8104 20*35*10 0.038 51204 8204 20*40*14 0.0773
51105 8105 25*42*11 0.056 51205 8205 25*47*15 0.109
51106 8106 30*47*11 0.06 51206 8206 30*52*16 0.138
51107 8107 35*52*12 0.066 51207 8207 35*62*18 0.22
51108 8108 40*60*13 0.12 51208 8208 40*68*19 0.27
51109 8109 45*65*14 0.15 51209 8209 45*73*20 0.32
51110 8110 50*70*14 0.16 51210 8210 50*78*22 0.39
51111 8111 55*78*16 0.24 51211 8211 55*90*25 0.619
51112 8112 60*85*17 0.29 51212 8212 60*95*26 0.69
51113 8113 60*90*17 0.324 51213 8213 65*100*27 0.75
51114 8114 70*95*17 0.36 51214 8214 70*105*27 0.79
51115 8115 75*100*19 0.392 51215 8215 75*110*27 0.85
51116 8116 85*105*19 0.404 51216 8216 80*115*28 0.925
51117 8117 85*105*19 0.46 51217 8217 85*125*31 1.3
51118 8118 90*120*22 0.64 51218 8218 90*135*35 1.77
51120 8120 100*130*25 1 51220 8220 100*150*38 2.4
51122 8122 110*145*25 1.08 51222 8222 110*160*38 2.6
51124 8124 120*155*25 1.16 51224 8224 120*170*39 2.9
51126 8126 130*170*30 1.8 51226 8226 130*190*45 3.91
51128 8128 140*180*31 2.1 51228 8228 140*200*46 4.6
51130 8130 150*190*31 2.2 51230 8230 150*215*50 5.8
51132 8132 160*200*31 2.3 51232 8232 160*225*51 6.7
51134 8134 170*215*34 3.3 51234 8234 170*240*55 8.3
51136 8136 180*225*34 3.5 51236 8236 180*250*56 8.9
51138 8138 190*240*37 4.1 51238 8238 190*270*62 11.9
51140 8140 200*250*37 4.2 51240 8240 200*280*62 12.4


Packaging:

1. Industrial packaging: plastic bag/plastic tube + kraft paper + carton + plywood pallets
2. Commercial packing: 1pc/plastic bag + color box + carton + plywood pallets
3. As the clients' requirement

Shipping:

DHL, FEDEX, TNT,ARAMEX
By SEA
By AIR


Our services:

1.Your inquiry to our product & price will be replied within 24hours.
2.Well-trained & experienced staff are to answer all your inquiries in English of course.
3.OEM & ODM projects are highly welcomed. We have strong R&D team here to help.
4.Your business relationship with us will be confidential to any third party.
5.Good after-sale service offered, please get back if you got question.

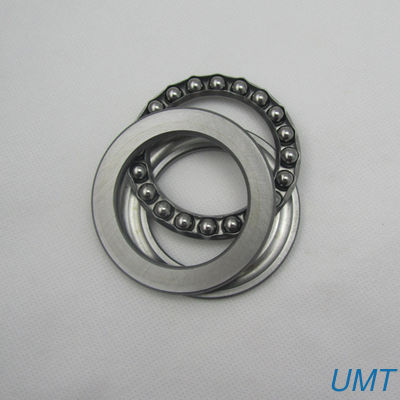

Photos of   Low Prices Ball Thrust Bearing 5110251102 Steel deep grove ball bearings for motorcycle engine and ART parts51102 Steel deep grove ball bearings for motorcycle engine and ART parts
